Deep Learning Boosts Security In Virtual Networks By Tackling Complex Intrusion Detection Challenges

By Muhammad OsamaReviewed by Joel ScanlonSep 15 2024

By leveraging deep learning, this research presents a robust solution to the persistent security challenges in virtualized networks, ensuring more reliable intrusion detection amidst dynamic environments and complex encapsulation techniques.

Study: Deep Learning for Network Intrusion Detection in Virtual Networks. Image Credit: sdecoret / Shutterstock

In an article recently published in the journal Electronics, researchers in Germany explored the application of deep learning techniques for network intrusion detection in virtual networks. They aimed to address the unique challenges posed by virtualized environments and proposed a convolutional neural network (CNN)-based approach to enhance the security of these networks.

Background

Virtual networks are important in modern network infrastructures due to their flexibility, scalability, and efficient use of resources. They allow multiple virtual networks to share the same physical infrastructure. However, virtualization introduces challenges in terms of network performance and security. These challenges are particularly pronounced due to the dynamic nature of virtualized environments, where frequent changes such as virtual machine (VM) migrations and network reconfigurations can significantly impact network flow and performance. Traditional network intrusion detection systems (NIDS), designed for physical networks, often struggle with the dynamic and encapsulated nature of virtual networks.

About the Research

In this paper, the authors examined the challenges of network intrusion detection in virtual networks, particularly those introduced by virtualization. They found that traditional intrusion detection methods, which analyze non-encapsulated network traffic, are not suitable for virtual networks due to encapsulation techniques such as virtual extensible local area network (VXLAN), ethernet virtual private network (EVPN), and network virtualization using generic routing encapsulation (NVGRE). These encapsulation techniques add layers of complexity that obscure underlying traffic patterns, making it difficult for conventional NIDS to detect intrusions accurately.

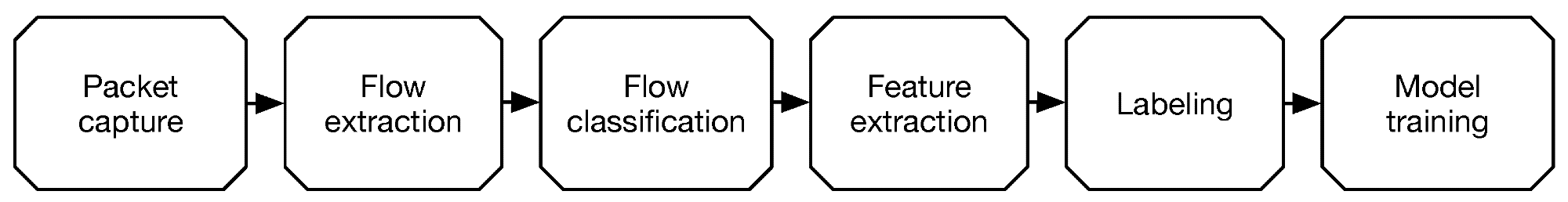

To overcome these challenges, the researchers implemented a deep learning-based NIDS using a convolutional neural network (CNN) architecture. This model was selected for its ability to detect patterns in data sequences, which is useful for analyzing network traffic. They created a data processing pipeline to collect, preprocess, and transform network traffic data. The dataset consisted of various network protocols and simulated attacks to train and test the model.

The methodology involved capturing network traffic from different environments, including home networks, university subnets, internet servers, and cloud platforms, covering many network and application protocols. This comprehensive approach ensured that the dataset reflected the diverse and dynamic conditions found in real-world virtual networks. The study performed various network-based attacks using tools like Metasploit and included malicious traffic from published datasets. Network traffic was transformed into virtual network traffic using Encapcap, which added the necessary headers for encapsulation.

The deep learning model was trained with TensorFlow on a dataset containing benign and malicious traffic. The model's architecture included multiple layers to detect anomalies in network traffic. Furthermore, the authors evaluated the model's performance by testing it on a separate dataset, focusing on accuracy, precision, F1-score, and recall in detecting intrusions in virtualized environments. This evaluation revealed significant trade-offs, particularly in terms of precision and recall, highlighting the model's effectiveness in correctly identifying threats while noting its limitations in detecting all potential intrusions.

Research Findings

The outcomes showed that the deep learning-based NIDS achieved an average accuracy of 97.95% in classifying network flows as benign or malicious. The model demonstrated high precision and recall, indicating its effectiveness in identifying true positive instances with minimal errors.

However, there was a noticeable drop in detection accuracy when analyzing network traffic encapsulated with protocols like VXLAN and GENEVE. This drop was particularly significant for GENEVE-encapsulated traffic, where the additional layers of encapsulation and metadata introduced further variability, complicating the model's ability to detect consistent patterns. This decrease in accuracy was due to additional layers of encapsulation, the dynamic nature of virtual networks, and variability in traffic patterns, which obscured the underlying traffic patterns and introduced variability in packet structures.

The study also found that virtualized environments have higher traffic variability due to dynamic changes such as virtual machine migrations and reconfigurations. This variability made it harder for deep learning models to learn consistent patterns for accurate detection. Despite these challenges, deep learning could still be effective for intrusion detection in virtual networks, provided the models are trained explicitly with virtualized network data. The findings underscore the importance of continually adapting intrusion detection systems to the specific characteristics of virtual networks to maintain their effectiveness.

Applications

This research has important implications for improving network security in virtualized environments. The proposed deep learning-based NIDS can be deployed on virtual machines or network uplinks to provide continuous traffic analysis and real-time intrusion detection. It offers flexibility and robustness in defending virtual networks against attacks such as SQL injections, buffer overflows, and denial-of-service attacks.

Effective intrusion detection systems are crucial for securing cloud-based applications and services. The findings can help design robust security measures that address the unique challenges of virtualization, ensuring better protection against cyber threats. In particular, the study highlights the need for specialized models that account for the encapsulation and variability inherent in virtual networks, potentially leading to the development of more sophisticated NIDS architectures in the future. Additionally, it highlights the need to adapt intrusion detection systems to the specific features of virtual networks to maintain effective security.

Conclusion

The paper summarized that while deep learning models hold promise for intrusion detection in virtual networks, further research is needed to address challenges associated with encapsulation and dynamic network configurations. Specifically, the authors suggest that future work should not only explore alternative deep learning architectures, such as recurrent neural networks (RNNs), deep neural networks (DNNs), graph neural networks (GNNs), and transformers, but also consider the integration of these models into real-time, adaptive systems capable of responding to the unique demands of virtualized environments. Improving the accuracy and reliability of intrusion detection systems could lead to more secure and resilient virtual network infrastructures.
