Innovative Bearing Fault Detection with Graph Neural Networks

By Muhammad OsamaReviewed by Susha Cheriyedath, M.Sc.Mar 11 2024

In an article published in the journal Scientific Reports, researchers from Xinjiang University, Urumqi, China, proposed an innovative approach for detecting faults in bearings using graph neural networks and ensemble learning. They developed a stochasticity-based method to transform vibration signals into graph data and integrated graph neural networks with a new ensemble learning strategy to enhance fault diagnosis accuracy and robustness.

Background

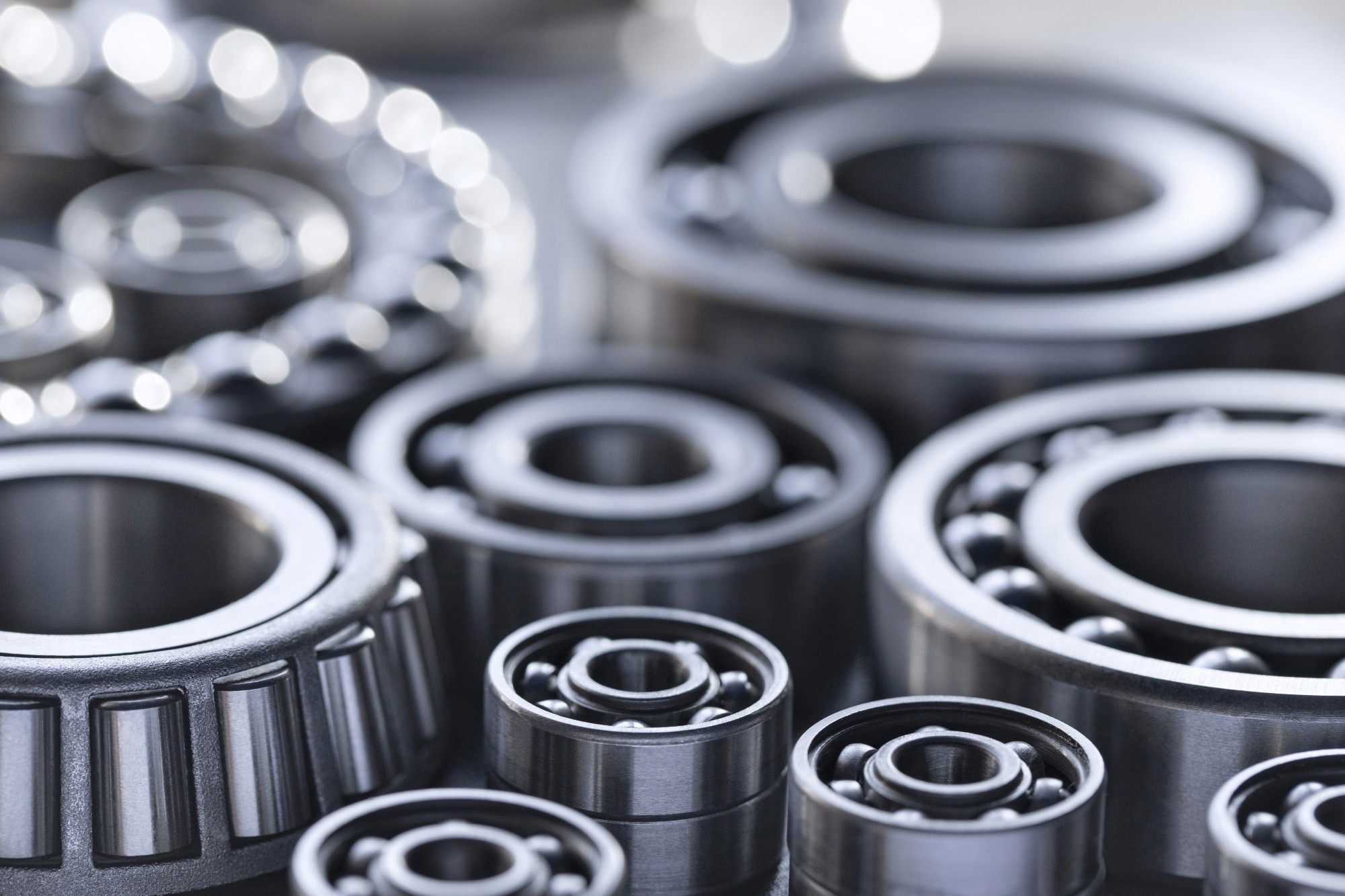

Bearings are essential components of rotating machinery that support the smooth operation of industrial and automation processes. However, bearing failures can cause severe accidents, high maintenance costs, and reduced equipment reliability. Therefore, timely and accurate detection of bearing faults is crucial for ensuring safety and efficiency.

Vibration analysis is a common technique for diagnosing bearing faults, as it can reveal valuable information about the type, location, and extent of the fault by monitoring and analyzing the vibration signal of the bearing. However, vibration signals are often noisy, complex, and non-stationary, making extracting the subtle features that indicate early faults challenging. Moreover, existing fault detection methods often neglect the relationships between different signal objects and fail to identify abnormal samples that are mixed with normal ones or surrounded by dense clusters.

About the Study

In the present paper, the authors designed a new method called bearing fault detection using graph neural networks and ensemble learning (BFDGE) to address the limitations of existing fault detection technology. A graph neural network is a deep learning model that can process graph-structured data and capture the complex and dynamic relationships among data objects. Ensemble learning is a technique that combines multiple algorithms to improve the performance, stability, and generalization of the model.

The developed approach has three main components: a graph generation module, a feature fusion module, and a bearing fault detection module. The graph generation module converts the original vibration signal data into graph data by randomly connecting each signal object to a certain number of neighboring objects and assigning weights to the edges based on the Euclidean distance.

The feature fusion module aggregates the features of neighboring nodes using a graph autoencoder, which is a graph neural network that can reconstruct the input graph and learn the latent features. The bearing fault detection module performs unsupervised fault detection using an ensemble learning strategy that selects the best combination of base detectors for each node based on its local region. The base detectors include five well-established outlier detection algorithms: graph autoencoder (GAE), autoencoder (AE), local outliers factor (LOF), connectivity-based outlier factor (COF), and k-nearest neighbors  (KNN).

Moreover, the study evaluated the performance of BFDGE on two public bearing fault datasets, including the Case Western Reserve University (CWRU) dataset and the Xi'an Jiaotong University (XJTU) dataset. Furthermore, it compared the newly developed BFDGE technique with six state-of-the-art fault detection methods: GAE, AE, LOF, COF, KNN, and generative adversarial network (GAN). Additionally, four metrics, including area under the curve (AUC), accuracy (ACC), detection rate (DR), and false alarm rate (FAR), were utilized to measure the performance.

Research Findings

The outcomes showed that BFDGE achieved the highest AUC and ACC values on both datasets, indicating its superior accuracy and overall performance. Additionally, it attained the highest DR and the lowest FAR values, indicating its capability to identify faulty samples and minimize false alarms accurately.

The authors also conducted robustness experiments, exploring the impact of different parameters on BFDGE's performance, such as the number of node neighbors, hidden layers, and base detectors. The results highlighted the robustness and stability of BFDGE across various parameter settings, achieving satisfactory outcomes.

The proposed method has potential applications in various fields that involve rotating machinery, such as aerospace, automotive, manufacturing, and energy. Using BFDGE, engineers and technicians can detect bearing faults in a timely and accurate manner and prevent equipment failures and accidents. Furthermore, it can be helpful to reduce maintenance costs, extend equipment lifespan, and improve operational efficiency. Moreover, it can be extended to other types of machinery faults, such as gear faults, motor faults, and pump faults, by adapting the graph generation and feature fusion modules to suit different signal characteristics.

Conclusion

In summary, the novel approach proved effective and efficient in detecting bearing faults. Leveraging deep learning-based graph neural networks and ensemble learning, it transformed vibration signals into graph data and aggregated neighboring node features using a graph autoencoder before executing fault detection. The authors demonstrated the effectiveness and superiority of this method on two public datasets, highlighting its robustness and stability across different parameter settings.

The researchers acknowledged limitations and challenges, including the need for complex signal processing and feature extraction, the difficulty of accurately predicting the applicability range of a base detector, the sensitivity of parameters to data feature distribution, and the computational complexity and time consumption of the algorithm. Moreover, they proposed several directions for future research, such as exploring new compositional methods, graph neural networks, and loss functions, enhancing and optimizing the algorithm's performance, strengths, and weaknesses, applying the algorithm to other domains and scenarios, and comparing it with more state-of-the-art methods.
