AI-Enhanced Wood Splitting Unlocks Stronger, Greener Building Materials

Inspired by traditional Alpine craftsmanship, scientists are reinventing wood processing with AI to turn undervalued hardwoods into high-performance building panels, offering a greener future for construction in a warming world.

Research: Split wooden rods for novel wood-based boards in the construction sector

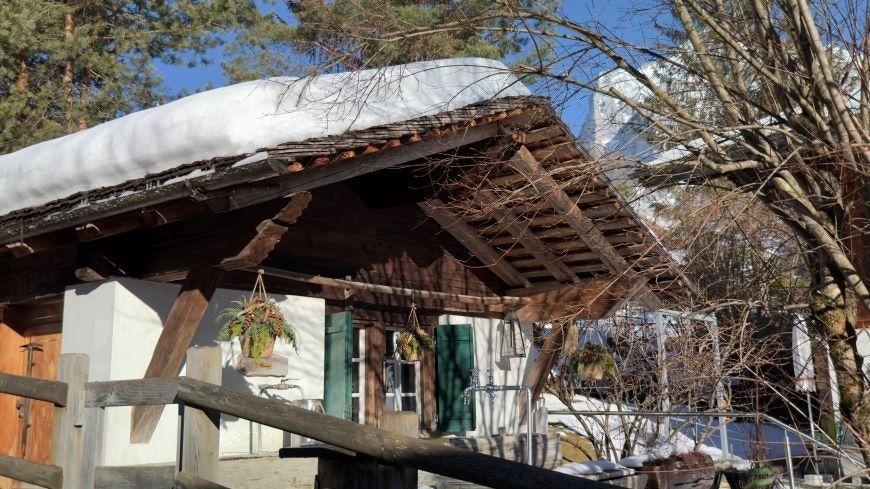

Wooden shingles characterize the appearance of roofs and facades in the Alpine region – and have been hand-crafted for generations. This centuries-old craft inspired researchers at Empa and ETH Zurich to use this very efficient wood separation method to produce new types of wood-based materials. "In view of the growing impact of climate change on our forests and the construction sector, the production of panels from split sticks is an obvious choice. This means that they can be produced from wood of varying quality and from hardwood species, generate less material loss and should come close to solid wood products in terms of strength," says Ingo Burgert, Professor at ETH Zurich and leader of a research team at Empa.

In Central Europe, spruce, in particular, is under increasing pressure due to longer periods of drought. More drought-resistant deciduous tree species will therefore play a more important role in the future. At the same time, the majority of hardwood in this country is currently burned to generate energy, despite the fact that more and more buildings are being built with wood, not least because, as a renewable resource, it binds CO2 in the building material for longer periods.

Splitting for maximum material yield

Traditionally, shingles are split by hand from log segments, while industrial processes rely on pneumatic splitting tools. "Shingle production shows us how wood can be processed in an energy-efficient and material-efficient way," explains Burgert. "Wood can be split parallel to the fibers with minimal energy and almost no losses." This chipless wood processing considerably increases the sawn timber yield, which, at around 60%, is significantly lower in Swiss sawmills.

In traditional shingle production, however, only selected high-quality softwood is usually used. The researchers rely on a two-stage splitting process to adapt the process for lower-quality hardwood species and to split longer sticks. First, flat elements are separated, then further processed into wooden sticks of the desired dimensions. On a laboratory scale, the researchers adapted an apparatus for splitting firewood for this purpose. Thanks to a multi-bladed splitting head, several boards or sticks can be produced simultaneously during one splitting process.

Selection thanks to AI

The splitting process produces wooden sticks in the direction of the grain without cutting the stiff and strong fibers. However, the irregular shape of the sticks poses a challenge. Burgert and his team rely on artificial intelligence (AI) to overcome this. An automated camera system captures high-resolution images of each wooden bar, which are fed into a neural network. "With AI, we can determine important wood properties such as stiffness for each stick, regardless of shape, size, or type of wood," explains Empa researcher Mark Schubert. "If we use different types of wood of different qualities in the future, wood sorting will play a crucial role. With our machine learning algorithms, we therefore generate as much data as possible about each individual piece of wood to use it optimally for wood-based materials with defined properties."

The team has pressed the first panels without sorting the wooden sticks beforehand. Even so, the potential of the manufactured demonstrators is already apparent: The panels can be produced in a highly resource-efficient manner and have mechanical properties that make them ideal for load-bearing components in the future. Despite challenges in terms of production processes, bonding, scalability, and the predictability of material properties, Burgert is optimistic: "Our process has the potential to offer a sustainable alternative for the use of wood in times of accelerating climate change."

New center for wood research in the planning

The project Split wood rods for innovative wood-based panels in construction is part of the Mainstreaming Wood Construction (MainWood) initiative. This initiative, which is supported by the ETH Board, promotes the increased use of wood in the construction industry. In addition, a Center for Wood Materials and Structures is currently being planned, which will bundle wood research at Empa and ETH Zurich and increase its visibility. As a central point of contact, the center will initiate innovative projects with the wood industry to make better use of wood along the entire value chain. By developing wood-based materials and technologies, the div will make application possibilities of the renewable and CO₂-storing resource wood accessible.
