Improving Urban Mobility with AI Traffic Models

Discover how a cutting-edge machine learning framework transforms traffic predictions, enabling real-time navigation and smarter urban planning worldwide.

Smart city. Communication network. Image Credit: metamorworks / ShutterstockResearch: Scalable Learning of Segment-Level Traffic Congestion Functions. Image Credit: metamorworks / Shutterstock

*Important notice: arXiv publishes preliminary scientific reports that are not peer-reviewed and, therefore, should not be regarded as definitive, used to guide development decisions, or treated as established information in the field of artificial intelligence research.

A research paper recently posted on the arXiv preprint* server introduced a novel data-driven framework to identify traffic congestion patterns in various urban environments. It leverages large-scale traffic data to analyze interactions between key traffic variables, providing valuable insights for real-time navigation and urban transportation planning. This approach offers a scalable solution for traffic flow estimation that is applicable to diverse metropolitan regions globally.

Addressing the challenges of traffic congestion, which impacts urban mobility, safety, and quality of life, the Google researchers employed machine learning techniques to examine traffic dynamics. Their goal was to improve traffic management strategies and navigation systems, ultimately contributing to more efficient and sustainable urban transportation networks. A notable aspect of this work is its ability to predict traffic properties, such as critical density, using only basic static attributes of road segments, further enhancing its utility.

Addressing the Challenges of Traffic Congestion

Traffic congestion significantly impacts urban mobility, safety, and quality of life, affecting travel times, fuel consumption, and environmental health. To predict and manage congestion effectively, it is essential to understand the complex relationships between key traffic variables: flow (vehicle volume), speed, and density.

Traditional methods often rely on estimating fundamental diagrams, which represent the relationships between these variables using data collected from fixed sensors. However, these methods struggle with limited spatial coverage and data gaps. Alternatively, global positioning system (GPS)-based floating vehicle data offers broader coverage but faces challenges in accurately estimating total flow due to variations in vehicle penetration rates. To overcome these challenges, this study focuses on developing "congestion functions" that relate observed partial flow, speed, and density, which can scale effectively across city-wide and global levels. This shift from traditional segment-specific methods to a unified, scalable model is a core innovation of the framework.

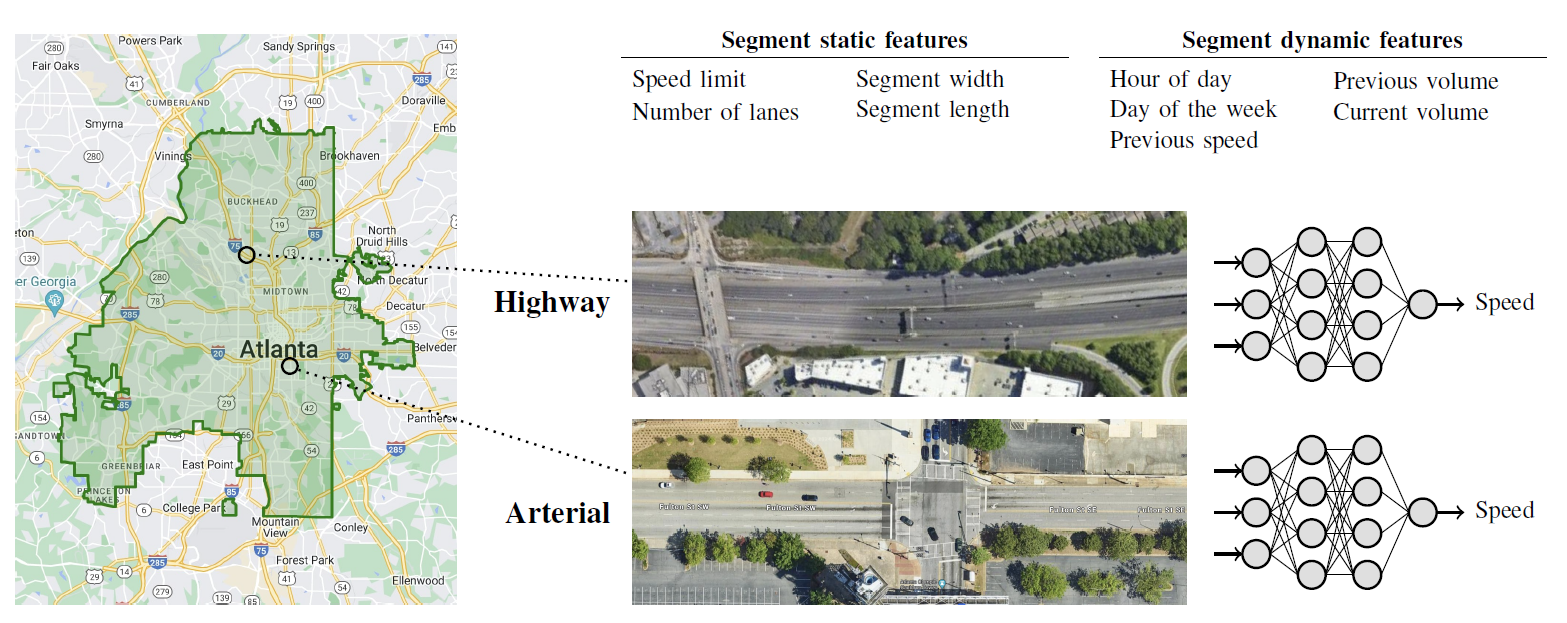

An overview of our approach. We collect datapoints that capture static and dynamic properties of each segment within a given city. We then segregate datapoints by road type, in particular whether they are from a highway or arterial road. Finally, we train a separate neural network on each class of samples to estimate mean speed given current observed volume and other features. The overhead images are from Google Maps.An overview of our approach. We collect datapoints that capture static and dynamic properties of each segment within a given city. We then segregate datapoints by road type, in particular whether they are from a highway or arterial road. Finally, we train a separate neural network on each class of samples to estimate mean speed given current observed volume and other features. The overhead images are from Google Maps.

A Data-Driven Approach for Congestion Function Identification

This paper proposes a comprehensive data-driven framework to identify segment-level traffic congestion functions using a generalized approach. Instead of estimating parameters for individual road segments, they developed a unified function applicable across all segments within a metropolitan area.

The framework combines traffic data from all segments into a single dataset, incorporating static attributes such as segment length, number of lanes, and speed limits alongside dynamic, time-dependent features like the hour of the day, day of the week, and previous speed and volume measurements.

A feed-forward neural network was then trained on this comprehensive dataset to predict space-mean speed based on observed partial flow and other traffic-related features. To account for distinct traffic patterns, separate neural networks were trained for highways and arterial roads. A sigmoid activation function was used to predict the inverse of mean speed, prioritizing accuracy during congestion periods. This design choice highlights the model's focus on critical traffic conditions.

The researchers utilized a sigmoid activation function in the model’s output layer to estimate the inverse of mean speed, focusing on improving prediction accuracy during periods of congestion. They applied a mean squared loss function (L2-squared) to the inverse speed, ensuring the model prioritized accuracy in congested conditions, thereby enabling a more effective representation of critical traffic dynamics.

Evaluation and Key Findings

The proposed framework was rigorously evaluated using a large-scale dataset that included data from multiple cities worldwide. The evaluation focused on two primary aspects: predictive utility and generalization capability. For predictive utility, the model's performance was compared against a per-segment baseline model (BPR) using held-out test data.

The outcomes demonstrated that the unified congestion function performed comparably to or outperformed the per-segment BPR model on highway segments. However, there was room for improvement on arterial roads. For example, aggregate metrics showed that the model struggled in highly congested periods but excelled during free-flow and transitional conditions, highlighting areas for refinement. Notably, the mean absolute error (MAE) of the single model was comparable to or lower than that of the BPR model for segments where the BPR model struggled due to insufficient data. An error analysis by speed quartiles showed that the single model excelled during free-flow and transitional periods, while the baseline model performed better during maximum congestion.

For generalization capability, the authors employed cross-validation and zero-shot transfer learning. Cross-validation results indicated that the unified model generalized effectively to unobserved segments within the same city. It achieved mean absolute percentage errors (MAPE) similar to those observed in the training data.

Zero-shot transfer learning demonstrated that the model successfully transferred between cities within similar geographical regions, such as the USA and Europe. However, its effectiveness decreased when transferring between cities in areas like Asia and the West. This suggests a need for region-specific enhancements to improve global applicability.

The study also assessed the model's ability to predict segment-specific traffic flow properties, including critical density, using only static segment attributes. The findings indicated that the framework could approximate critical density with accuracy comparable to segment-specific models, demonstrating its potential for scalable applications.

Applications

This research has significant implications for advancing transportation systems. The framework's ability to accurately predict traffic speed from observed flow at both global and segment-specific levels enhances real-time navigation systems, allowing for more effective adaptation to fluctuating congestion patterns.

Policymakers can utilize this system to forecast the effects of various interventions, thereby improving traffic management strategies. Additionally, its capability to estimate segment-specific properties, such as critical density, using only static attributes provides crucial insights for urban planning, fostering more efficient and sustainable transportation networks. By addressing the challenges of traditional data gaps and scalability, this framework opens new avenues for urban mobility innovation.

Conclusion and Future Directions

In summary, the novel data-driven system proved effective for identifying segment-level traffic congestion functions, showing promising results in both predictive accuracy and generalization. While the single model outperformed segment-specific models for highway segments, there remains room for improvement in arterial roads.

Future work could focus on integrating more advanced segment features, exploring machine learning techniques such as graph neural networks, and incorporating physics-informed constraints to enhance accuracy and generalizability. Additionally, applying this system to tasks like traffic property inference and congestion forecasting and testing it on open-source datasets would further validate its effectiveness. Addressing regional differences and enhancing model transferability will also be critical for expanding its global impact.

*Important notice: arXiv publishes preliminary scientific reports that are not peer-reviewed and, therefore, should not be regarded as definitive, used to guide development decisions, or treated as established information in the field of artificial intelligence research.

Journal reference:
  • Preliminary scientific report. Choudhury, S., & et al. Scalable Learning of Segment-Level Traffic Congestion Functions. arXiv, 2024, 2405, 06080. DOI: 10.48550/arXiv.2405.06080, https://arxiv.org/abs/2405.06080
