Parallel Computing Boosts Feature Model Analysis

By Muhammad OsamaReviewed by Susha Cheriyedath, M.Sc.May 27 2024

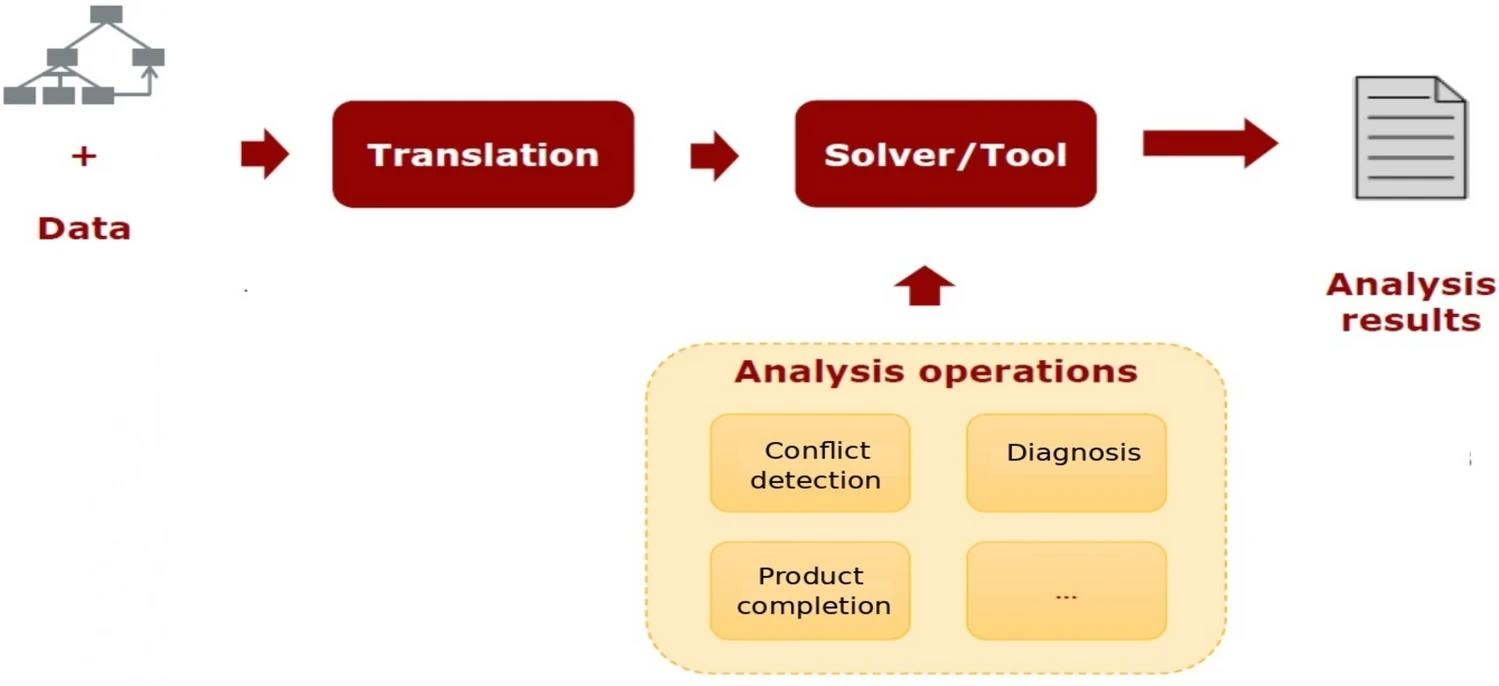

In a recent article published in the journal Scientific Reports, researchers explored the application of speculative programming to enhance the efficiency of automated analysis of feature models (AAFM) in large-scale product configurations.

They investigated the use of parallel computing techniques to address the computational challenges associated with analyzing complex feature models (FMs), which are essential for defining and managing product variability in software product lines.

Background

Parallel computing leverages multiple processors or computing elements to execute tasks simultaneously, enhancing the performance and speed of complex computations. This technology has gained significant importance due to the increasing demand for processing power and data analysis in various fields, including scientific research and software development.

FMs are graphical representations of product variability, capturing different features and options available in a software product line. They provide a structured framework for managing and analyzing diverse configurations derived from a common set of core functionalities. However, as FM complexity increases, the computational burden of analyzing them also increases

About the Research

In this paper, the authors addressed the limitations of existing sequential-computing solutions for AAFM, particularly in large-scale FMs and feature selection processes. They focused on optimizing the performance of two well-established AAFM solutions: QuickXPlain and FastDiag. QuickXPlain detects minimal conflict sets (MCS), representing the smallest set of constraints causing an inconsistency in a feature model. FastDiag identifies minimal diagnoses (MD), the minimal sets of constraints needed to resolve a conflict.

While QuickXPlain and FastDiag are efficient as sequential-computing algorithms, their sequential nature limits additional computing resource utilization. This constraint prompted the exploration of speculative programming techniques to parallelize these AAFM solutions and optimize their computational performance for feature selection.

To overcome the inherent limitations of sequential QuickXPlain and FastDiag in large-scale product configurations, the study adapted speculative programming methodologies, transforming them into parallelized versions: ParallelQuickXPlain and ParallelFastDiag.

These parallelized versions were engineered to conduct pre-calculated consistency checks and leverage parallel execution to achieve significant reductions in runtime. By parallelizing these AAFM solutions, the researchers aimed to exploit the capabilities of multiple cores and network technologies, thereby optimizing computational efficiency and scalability in product configuration processes.

Research Findings

The experimental evaluation demonstrated the effectiveness of parallelized AAFM solutions. ParallelQuickXPlain outperformed the standard QuickXPlain algorithm. With a maximum search depth (l_max) of 4, ParallelQuickXPlain identified the smallest conflict involving 16 constraints (cardinality 16) an average of 1.82 times faster.

This performance improvement exhibited a generally increasing trend as l_max increased. However, exceptions emerged when the number of pre-generated consistency checks exceeded the available processing cores, leading to a decline in performance.

Similarly, ParallelFastDiag surpassed the standard FastDiag algorithm, identifying the smallest diagnosis 23.54% faster on average for a conflict of cardinality 16 compared to FastDiag (l_max = 1). Like ParallelQuickXPlain, the performance improvement of ParallelFastDiag generally increased with larger l_max values. However, exceptions occurred when the number of pre-generated consistency checks surpassed the available computing resources.

These findings validated speculative programming's effectiveness in enhancing AAFM solution computational efficiency, especially for large-scale FMs and configurations. By leveraging parallel execution and pre-calculated consistency checks, both ParallelQuickXPlain and ParallelFastDiag achieved significant speedups compared to their sequential counterparts. Increased performance with higher l_max underscored approach scalability, though researchers acknowledged potential performance degradation due to exceeding available processing resources with a high number of pre-calculated consistency checks.

Applications

Parallelized solutions can significantly enhance variability management in software product lines and other high-variability systems. In contexts where manual feature model analysis is error-prone and time-consuming, these solutions offer a more efficient alternative. Improved runtime performance enables interactive and responsive product configuration experiences, crucial for applications requiring real-time feedback and decision-making, such as e-commerce platforms, configurator tools, and interactive design environments.

Moreover, this research's outcomes have broader implications for organizations facing growing demands for adaptable and customizable software products. By leveraging parallelized solutions, organizations can better meet evolving customer and market needs. Beyond software engineering, this study can inspire further exploration of speculative programming techniques across various domains, promising performance improvements, and enhanced computational efficiency in diverse applications.

Conclusion

In summary, speculative programming adoption to parallelize automated AAFM solutions represented a significant advancement in feature model-based product configuration efficiency. It effectively enabled more efficient and effective decision-making in complex configuration scenarios by reducing latency and enhancing scalability.

Moving forward, the researchers proposed investigating more advanced speculative programming strategies that can dynamically adjust the number of pre-calculated consistency checks based on problem characteristics and available hardware resources. Moreover, they recommended integrating parallelized AAFM solutions into existing software product line engineering tools and frameworks, such as FAMA, FeatureIDE, and FAMILIAR. This integration would streamline parallel computing capability incorporation into established workflows, promoting broader adoption and practical application of these advancements in real-world scenarios.
