DPA-1: A Deep Potential Model for Molecular Simulation

By Dr Silpaja Chandrasekar, PhDReviewed by Susha Cheriyedath, M.Sc.May 15 2024

In a paper published in the journal Npj Computational Materials, researchers introduced a deep potential model with a gated attention mechanism (DPA-1) representing atomic system conformation and chemical spaces. This model offers superior performance in learning the potential energy surface (PES) compared to existing benchmarks.

By pretraining on extensive datasets covering 56 elements, DPA-1 demonstrated remarkable efficiency in various downstream tasks. Notably, the model unveiled intriguing interpretability, as its learned type embeddings aligned in a spiral pattern in latent space, corresponding naturally to the periodic table positions of elements.

Inter-atomic Potential Challenges

Previous research has aimed to balance accuracy and efficiency in representing the inter-atomic PES through machine learning (ML) methodologies. While electronic structure methods offer accuracy, they are computationally expensive, leading to the development of ML-based PES models.

Challenges remain in obtaining reliable models, prompting efforts in general-purpose models, efficient data generation protocols, and pretraining schemes. Equivariant graph neural networks (GNNs) show promise for large dataset training, but practical issues such as parallelization and conservativeness need addressing.

Methodological Framework

In the methodological framework, the inter-atomic PES for a system of N atoms, each characterized by elemental types and coordinates, is denoted as E. The atomic energy e_i solely relies on the information from neighboring atoms and their respective coordinates. These neighbors, defined by their Euclidean distances, contribute to the total energy summation. Essential requirements for PES modeling include invariance under translation, rotation, and permutation of atoms with identical elemental types.

The model architecture comprises several components. Initially, a local embedding matrix is derived, incorporating spatial coordinates and atomic-type embeddings. This matrix undergoes a self-attention mechanism, allowing for the weighting of interactions among neighbor atoms based on both distance and angular information. The attention weights are computed using a scaled dot-product method and layer normalization to yield the self-attention local embedding matrix. This process is iterated multiple times for a comprehensive representation. The encoded feature matrix, preserving desired invariance properties, is then passed through a multi-layer fitting network to obtain the atomic energy predictions.

The Adam stochastic gradient descent method minimizes the loss function for model training or pretraining, which compares the model predictions with reference density functional theory (DFT) results. A scheduler adjusts prefactors during training for balanced energy and force labels.

Energy biases are updated based on statistical results, followed by partial parameter fixation and training iteration to fine-tune the pre-trained model with a new dataset. This approach ensures efficient adaptation to new data while retaining learned representations.

DPA-1 Evaluation Details

The team conducted DPA-1's performance evaluation through a series of experiments. Initially, the model's transferability among different compositions was assessed by training it on various systems and testing it under challenging schemes.

Subsequently, after pretraining with single-element and binary data, its ability to transfer to ternary systems was examined using an aluminum-magnesium copper (AlMgCu) dataset. Finally, DPA-1 was pre-trained on the open catalyst two million (OC2M) subset and applied to various downstream tasks, with comparisons made against the deep potential with the self-attention (DeepPot-SE) model in all experiments.

The evaluation utilized datasets spanning AlMgCu alloy systems, solid-state electrolyte (SSE) systems, and high entropy alloy (HEA) systems. Each dataset presented distinct challenges, covering diverse compositions and structural complexities. DPA-1 demonstrated significant improvements over DeepPot-SE across various validation scenarios.

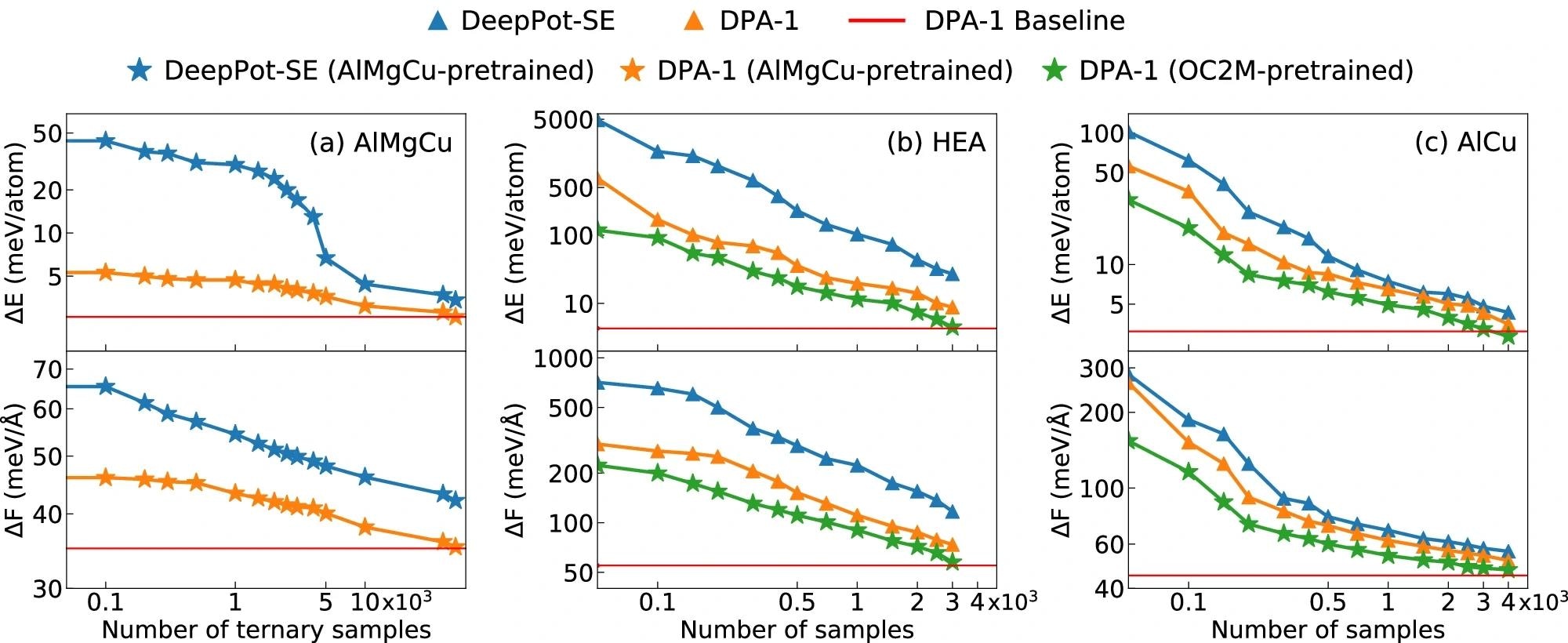

Notably, in AlMgCu systems, even when trained solely on single- and binary-element samples, DPA-1 exhibited superior validation accuracy on ternary samples, highlighting its robustness in capturing complex interactions. By leveraging pre-trained models, DPA-1 showcased remarkable sample efficiency compared to DeepPot-SE, particularly evident in tasks involving diverse compositions. Pretraining on the OC2M dataset significantly enhanced DPA-1's performance across different systems, substantially saving training time and computational resources.

Through principal component analysis (PCA) visualization and interpolation experiments, DPA-1 demonstrated interpretability in learned type embeddings. The arrangement of elements in the latent space followed a discernible pattern, reflecting underlying periodic table properties.

Interpolation experiments further validated the model's ability to generalize to unseen elements, reinforcing its interpretability and applicability in diverse scenarios. In summary, DPA-1 exhibited superior performance, sample efficiency, and interpretability, showcasing its potential as a versatile tool for various molecular simulation tasks.

Summary

In conclusion, DPA-1 demonstrated robust performance, efficiency, and interpretability, establishing itself as a versatile tool for molecular simulations. Through a series of experiments, thorough evaluations were conducted to assess its capability to transfer among different compositions, sample efficiency with pretraining, and interpretability of learned embeddings.

DPA-1 exhibited superior performance over DeepPot-SE and proved its capability to generalize to unseen elements, highlighting its potential for diverse molecular simulation tasks. With its promising capabilities, DPA-1 was a valuable asset in computational physics and materials science, offering enhanced accuracy and efficiency in modeling inter-atomic PES.
