Snail-Inspired Robotic Swarms for Navigating Unstructured Environments

By Soham NandiReviewed by Susha Cheriyedath, M.Sc.May 13 2024

In an article published in the journal Nature, researchers introduced a novel terrestrial robotic swarm system inspired by land snails, designed for unstructured environments. They featured a two-mode connection mechanism, mimicking snails' locomotion and response to disturbance.

The system leveraged magnet-embedded tracks for freeform mobility and vacuum suckers with directional polymer stalks for robust adhesion. Outdoor experiments showcased individual robot capabilities and swarm synergy, advancing applications of robotic swarms in real-world unstructured environments.

Background

Robot swarms, inspired by natural collective behaviors observed in species like fish, insects, and birds, exhibit emergent properties that enable them to accomplish complex tasks. While aerial and aquatic swarms have been extensively studied, terrestrial robot swarms face unique challenges, particularly in navigating unstructured outdoor environments. Existing designs often lack mobility and robust interconnectivity required for outdoor deployment.

This paper addressed these limitations by introducing a snail-inspired robotic swarm system tailored for unstructured terrains. Previous approaches either focused on indoor environments or lacked sufficient connection strength for outdoor tasks. By drawing inspiration from land snails, known for their adaptability and robustness, the proposed system employed a two-mode connection mechanism resembling snail locomotion and response to disturbance. This novel approach enabled individual robots to traverse diverse outdoor terrains while forming cohesive units for collaborative tasks.

Unlike previous designs, the snail robot swarm combined mobility with strong interconnectivity, facilitating obstacle traversal and manipulative tasks in outdoor environments. Through extensive testing and analysis, this research aimed to advance the capabilities of terrestrial robot swarms for real-world applications in dynamic outdoor settings.

Design, Fabrication, and Evaluation of a Snail Robotic Swarm System

The research methodology comprised a comprehensive study of land snail morphology, focusing on both general body structure and dynamic foot shape changes under external forces. Following ethical guidelines, the study involved procuring White Jade snails. The fabrication of the snail robot involved using a spherical shell made of thin iron plates and irregular metal surfaces for smooth transitions, while carbon fiber plates reduced overall weight. Each robot integrated various motors for different functions, including driving caterpillar tracks and controlling suction cups.

Magnetic tracks and polymer rubber bodies with embedded magnets formed the robot's connection mechanism. Additionally, the sucker with directional polymer stalks was fabricated for robust adhesion. Performance measurements involved evaluating maximum forces and torques for both the sucker mechanism and the overall robot system.

The experimental design included indoor tests on foam boards and outdoor tests on various terrains, assessing tasks like traversing gaps, climbing steps, and navigating slopes. Swarm experiments evaluated the effectiveness of snail robot units in different modes for tasks and environments. Centralized computer control via Wi-Fi modules facilitated coordination among robots. Data analysis involved solving optimization problems using MATLAB and processing data using Python, with uncertainty bounds provided as means and standard deviations.

Results of Snail Robot Swarm Performance and Task Execution

The researchers delved deep into the intricate mechanisms of the snail robot, emphasizing its ferromagnetic spherical shell and versatile dual-mode connection system. In free mode, the robot utilized magnetic tracks for propulsion, while strong mode employed a retractable vacuum suction cup for robust adhesion. Fabrication details underscored the use of lightweight materials and specialized adhesives to ensure optimal performance. Performance measurements evaluated both sucker adhesion and overall system capabilities, providing comprehensive insights.

Task allocation principles between free and strong modes were elucidated, showcasing how each mode optimized performance for different tasks. Free mode enabled flexible movement and smooth reconfiguration actions, essential for assembly and self-reconfiguration tasks. Conversely, strong mode enhanced connection strength, facilitating manipulation, locomotion, and support tasks.

The authors also addressed associated risks during reconfiguration actions in free mode, introducing three risk ratios, namely, resistance risk ratio (RERR), tipping over risk ratio (TORR), and slipping risk ratio (SPRR). Visualization through variation curves offered a clear understanding of risk levels during various movement stages.

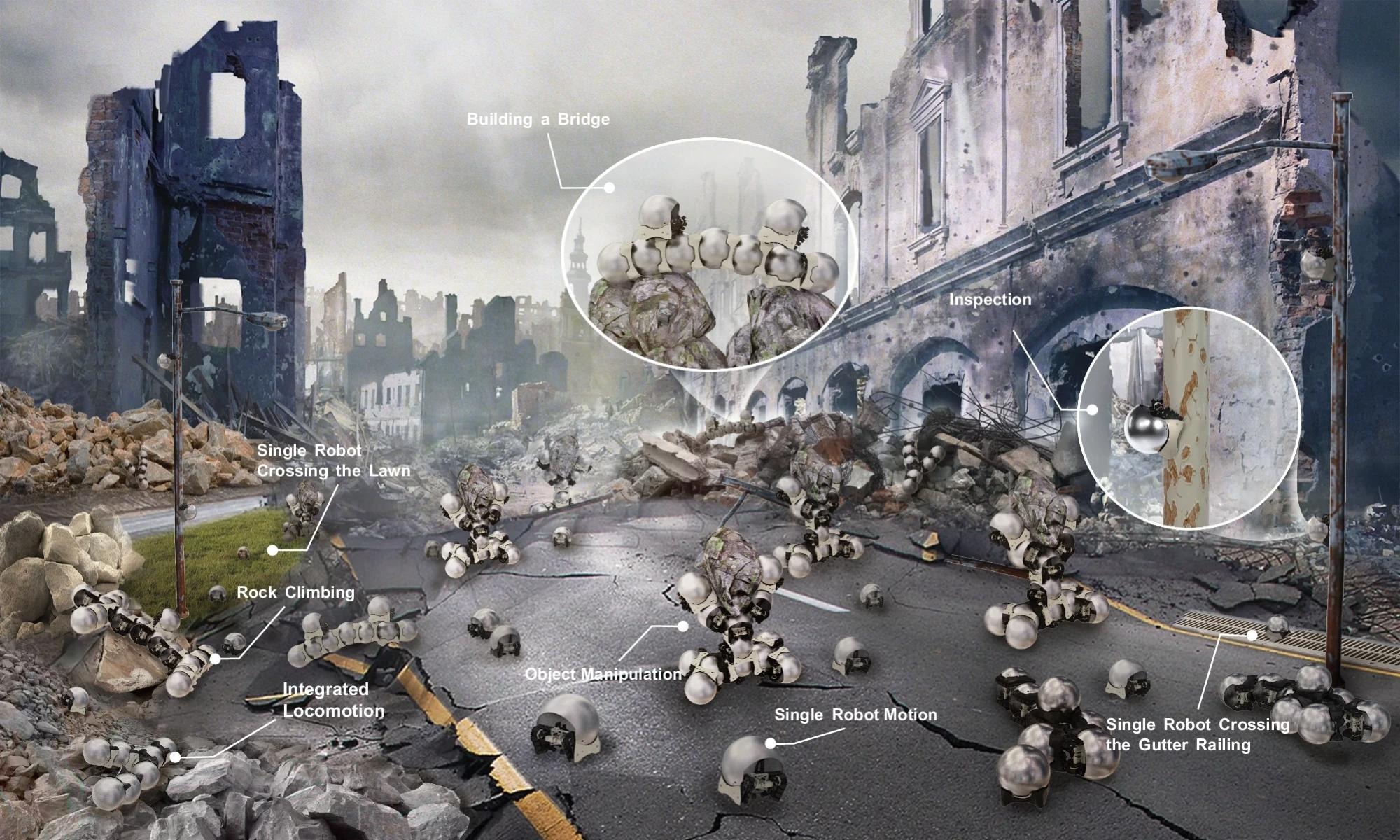

Additionally, the authors highlighted the snail robot swarm's adaptability and collaborative potential in traversing diverse terrains, overcoming obstacles, and performing robotic manipulation tasks. From climbing rock steps to traversing cobblestone roads, the robots demonstrated superior adaptability and collective motion strategies. Furthermore, their ability to form robotic arms for object manipulation underscored their utility in real-world applications requiring flexibility and teamwork.

Unleashing the Potential of Snail Robotics

The authors introduced a revolutionary three-dimensional self-reconfiguring snail robot swarm, tailored for navigating complex, unstructured environments. Overcoming the limitations of indoor-centric swarms, the hybrid connection system, inspired by snail locomotion, offered medium-stability magnetic and high-stability suction connections.

This bionic design enabled unparalleled flexibility and scalability through two modes: free and strong. Outdoor experiments validated the swarm's collaborative prowess across diverse terrains, from steps to rugged landscapes, with implications for real-world applications like search and rescue.

Configuration optimization through reinforcement learning simulations ensured efficiency, while future research focused on enhancing connection robustness and expanding swarm capabilities. Integration of advanced control algorithms and magnet-based localization systems promised further advancements in autonomous decision-making and navigation. The groundwork laid by the snail robot swarm paved the way for transformative developments in terrestrial robotics, unlocking new horizons in unstructured environments.

Conclusion

In conclusion, the snail-inspired robotic swarm system represented a leap forward in terrestrial robotics, offering adaptability and collaborative potential in navigating challenging environments. By combining biomimicry with advanced connection mechanisms, this research opened avenues for real-world applications like search and rescue. Future enhancements promise even greater robustness and autonomy, signaling a promising future for snail robotics in unstructured terrains.
