In a paper published in the journal Scientific Reports, researchers used machine learning to enhance the characterization of X-radiation (X-ray) free-electron laser (XFEL) pulses, which often suffer from noise and limited coherence.

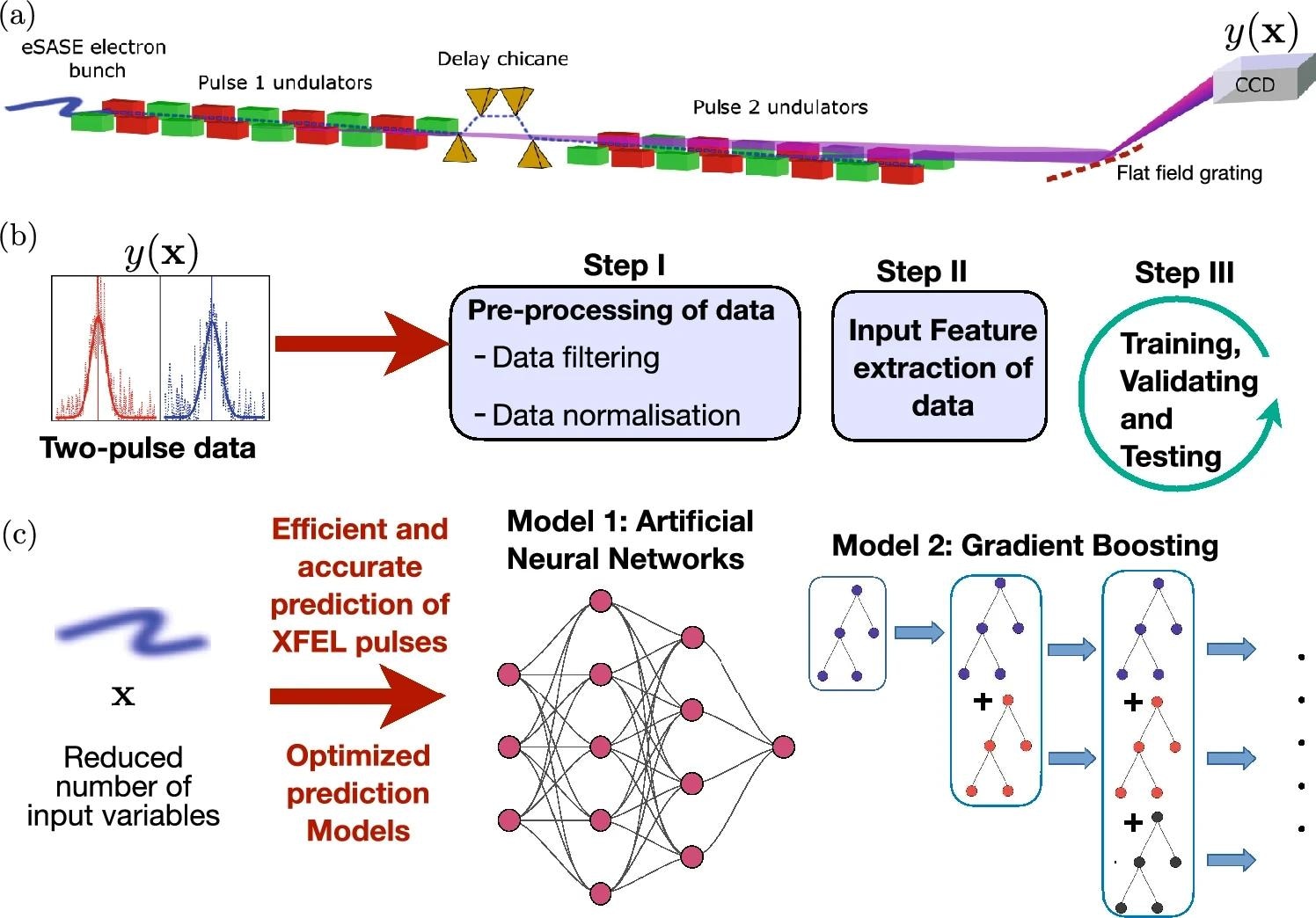

(a) Diagram of the XFEL configuration for two-colour X-ray pulse generation: An electron bunch is modulated in energy-time phase space to yield a high peak current that propagates between two undulator sections separated by a chicane that introduces delay between two pulses. In each undulator section, self-amplified spontaneous emission (SASE) generates a bright, coherent X-ray pulse. A CCD camera is used to measure the spectrum of the two pulses. (b) Diagnostics are used to measure the energies of the two-colour XFEL pulse y(x) which depend on the input feature vector x. Both y(x) and x are used to build the prediction model, which consists of three main steps: pre-processing of data, feature extraction, and training/validating/testing of the prediction model. Two different prediction models were used in this work: neural networks and decision tree based on gradient boosting classifier. (c) An optimized neural network or gradient boosting classifier is applied directly to real-time experiments for efficient prediction of central photon energies for two-colour XFEL pulses. https://www.nature.com/articles/s41598-024-56782-z
By predicting central photon energies of attosecond pulses, they optimized XFEL performance without extending detection windows, potentially improving applications like time-resolved spectroscopy. This innovation could significantly advance experimental outcomes in various fields reliant on XFEL technology.
Related Work
Past work has highlighted the versatility of XFELs for various research applications, owing to their tunability, brightness, and short pulse durations. XFEL sources generate X-ray pulses by accelerating electron bunches and allowing them to interact with magnetic fields in an undulator.
Despite their utility, XFEL pulses often exhibit significant single-shot variations due to the stochastic nature of the self-amplified spontaneous emission (SASE) process and fluctuations in radiofrequency (RF) amplitudes or phases. Traditional methods for pulse characterization could be faster and more invasive, limiting their efficiency. Recent studies have explored machine learning techniques to predict XFEL properties using data from fast diagnostics, exploiting correlations between XFEL properties and easily obtainable parameters such as electron beam properties.
Experimental Setup and Analysis
In the experiment on attosecond two-color pulses, data were obtained from a configuration similar to previous work, utilizing an enhanced SASE mode. This mode introduces complexity due to unpredictable phase variations between emitting micro bunches, influencing temporal properties. The undulator period, electron bunch energy, and SASE emission position within the bunch determine photon energy.
Utilizing a second set of undulators in two-colour mode produces a second pulse, either at the second or third harmonic of the first, with the first pulse seeding the second. Researchers achieve the time delay between pulses by separating them based on group velocities, estimating that both have temporal lengths below 500 attoseconds.
Data preprocessing involves filtering and normalization steps to refine the dataset. Researchers remove outlier events, exclude features with limited variability, and eliminate highly correlated features. Data is normalized to scale input and output variables for modeling. Researchers provide key code, and input feature ranking guides the analysis. Machine learning methods, including linear modeling, gradient-boosting decision trees, and neural networks, are employed for predictive modeling.
Linear regression fits a general linear function to the dataset, while gradient boosting combines decision trees iteratively to enhance model accuracy. Neural networks, specifically feed-forward networks, are utilized for supervised learning, with model architecture and hyperparameters optimized using Bayesian optimization. The chosen architectures yield accurate predictions and training convergence with reduced computational costs.
Overall, the experiment entails detailed preprocessing steps, various machine learning methods, and optimization of model architectures to predict pulse characteristics accurately. These efforts enable efficient analysis.
Dimensionality Reduction in XFEL
Reducing the dimensionality of the input space is crucial for identifying the most relevant input features, particularly in complex experiments involving XFELs. In this study, researchers aimed to isolate the key parameters—primarily XFEL electron beam properties—that significantly influence the output predictions. By conducting a thorough statistical analysis and employing the permutation feature importance function, they ranked the relevance of input features and identified those crucial for accurate predictions.
The permutation feature importance function highlighted the importance of certain input features, particularly those related to electron beam properties. This function enabled the researchers to rank input features based on their impact on predicting the central photon energy of the second pulse using an artificial neural network (ANN). The top ten relevant features primarily consisted of electron beam properties, indicating their significant role in shaping pulse characteristics.
The study also explored the accuracy of predictions for the central photon energy of the second pulse under different detection scenarios. Both linear modeling and ANN demonstrated the ability to make accurate predictions without spectral information of the first pulse, suggesting potential applications in experimental setups where simultaneous measurement of both pulses is challenging. Additionally, the accuracy of forecasts improved with an increase in the number of undulators between the pulses, underscoring the importance of experimental setup parameters in predictive modeling.
The findings suggest that machine learning methods, particularly gradient boosting, offer efficiency and accuracy in predicting pulse characteristics in XFEL experiments. Despite the limitations of current experimental data collection methods, such as limited spectral range and high data volumes, machine learning techniques promise to extract valuable information from XFEL measurements, paving the way for improved prediction accuracy in future experiments.
Furthermore, the study's findings highlight the adaptability of machine learning techniques to diverse experimental conditions and data constraints inherent in XFEL research. By effectively reducing the dimensionality of input space and focusing on critical parameters, these methods can yield precise predictions even with limited spectral information or high data volumes. This adaptability enhances the efficiency of data analysis and facilitates the extraction of valuable insights from XFEL measurements, contributing to a deeper understanding of complex physical phenomena. Thus, the integration of machine learning approaches holds significant promise for advancing XFEL research and unlocking new frontiers in ultrafast science and technology.
Conclusion
To sum up, the study emphasized dimensionality reduction in XFEL experiments to enhance predictive accuracy. Key parameters, especially electron beam properties, were identified by leveraging machine learning and shaping pulse characteristics.
Linear modeling and ANN showed promise in accurate predictions, even without complete spectral information. Increased accuracy was observed with additional undulators between pulses, highlighting the influence of experimental setup parameters. Overall, machine learning methods, particularly gradient boosting, demonstrated potential in predicting pulse characteristics in XFEL experiments, offering pathways for enhanced accuracy and deeper insights into ultrafast phenomena.
