Revolutionizing Mars Exploration: Novel Technique Measures Rocks with Precision

In a study published in Remote Sensingresearchers developed a novel technique to accurately measure the distances to and sizes of rocks on the Martian surface. The method analyzes images gathered by cameras mounted on rovers traversing the planet's surface.

Study: Revolutionizing Mars Exploration: Novel Technique Measures Rocks with Precision. Image credit: Triff/Shutterstock
Study: Revolutionizing Mars Exploration: Novel Technique Measures Rocks with Precision. Image credit: Triff/Shutterstock

Transforming Pixels into Mars Coordinates

The core innovation of the technique involves modeling the rover camera's pose and parameters to transform image pixels into unified Mars coordinates. This allows locating rocks detected in images within a 3D Martian reference frame for analysis. Two key models are formulated - a semi-spherical model (SSM) encoding the rover's mechanics to represent the camera's yaw, pitch, and roll orientation and a projection model (PM) estimating the ground area visible in each image.

The SSM uses matrix transformations to characterize the camera geometry based on the rotations of the rover chassis and camera mast. The PM projects the camera's field of view frustum onto the Martian landscape. Combining the SSM and PM allows the correspondence between the rover camera images and the 3D Martian environment to be established. This enables pixel detection and measurement mapping into the global Mars coordinate system.

Calculating Rock Distance and size

With the imaging models linking pixels to Mars coordinates, rock distance can be calculated using stereo disparity techniques. The study utilizes the Navigation and Terrain Camera (NaTeCam) images on China's Zhurong Mars rover. NaTeCam provides stereo image pairs from its left and suitable cameras separated by a fixed baseline distance. Disparity refers to the offset between the projections of the same 3D point in both stereo images.

The researchers employed Semi-Global Matching (SGM) and filtering algorithms to generate disparity maps from image pairs. The disparity map provides a depth estimate for each pixel. These pixel depths are transformed into real-world Mars distances using the baseline separation and camera parameters. The filters refine the raw disparity maps to sharpen rock contours and reduce noise. This yields more accurate distance measurements, especially for rocks with indistinct edges.

In addition to distance calculation, the authors demonstrate their technique to estimate rock sizes from rover images. The refined disparity map provides the depth of contour pixels belonging to rock boundaries. Using the left, right, top, and bottom contour pixel locations and depths, a rock's horizontal and vertical dimensions can be calculated.

The method also classifies rocks as repeatable (visible in multiple images) and single (appear only once). The distance and size estimates are combined from multiple images to improve precision for repeatable rocks. By sharply revealing rock contours, the filtering step enables more robust automated size estimation than directly using raw disparity maps.

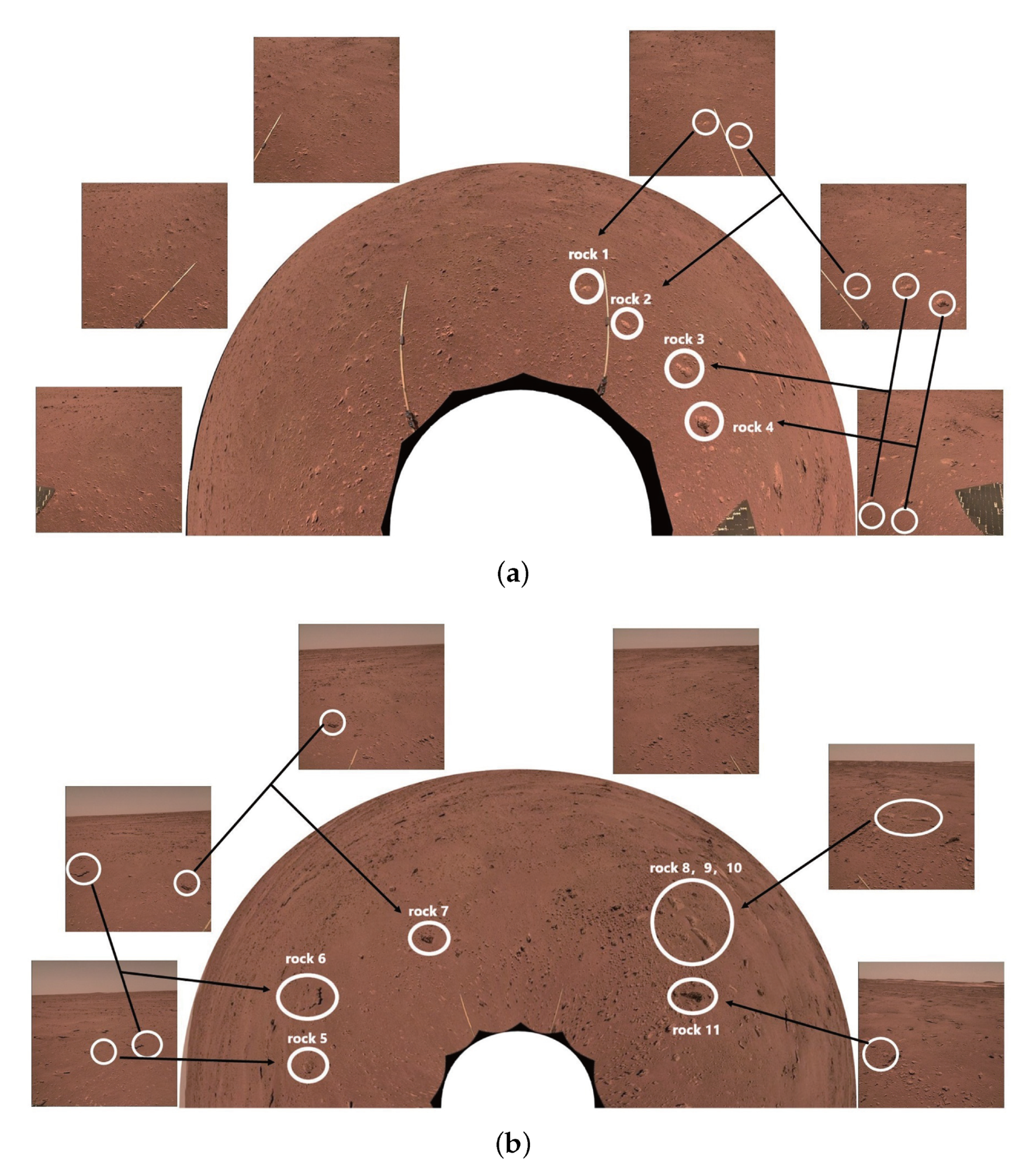

Images captured by the NaTeCam onboard the Zhurong on 22 January 2022 and 3 September 2021. Each image is stitched together from six NaTeCam images. Rocks 1–11 are marked by the red circle. (a) A 180-degree surround image of the Martian surface on 22 January 2022. (b) A 180-degree surround image of the Martian surface on 3 September 2021.I​​​​​​​mages captured by the NaTeCam onboard the Zhurong on 22 January 2022 and 3 September 2021. Each image is stitched together from six NaTeCam images. Rocks 1–11 are marked by the red circle. (a) A 180-degree surround image of the Martian surface on 22 January 2022. (b) A 180-degree surround image of the Martian surface on 3 September 2021.

Validating Accuracy

The researchers validated their technique on images collected by the NaTeCam cameras onboard China's Zhurong rover, currently operating on Mars. Both single rock instances near the landing site and repeatable rocks photographed multiple times during the rover traverse were evaluated. The experiments successfully demonstrated distance measurements up to 17 meters for repeatable rocks calculated from different rover poses.

The distance results closely matched prior height estimates from orbital satellite data for single rocks proximal to the landing platform. The size computation also correctly determined rock dimensions within a few centimeters of the ground truth. The empirical evaluations prove the method's capability to reliably measure and map Martian rocks in terms of location, distance, and size using authentic rover images.

Significance of the Study

Accurately characterizing the Martian terrain by mapping the presence and distribution of rocks has essential implications for rover engineering and scientific goals. Engineering-wise, a priori knowledge about hazardous rocks, their locations, and their dimensions allows a much better terrain traversability assessment. This enables a more intelligent selection of safer traversal paths, avoiding risk, which is vital for rover navigation and autonomous driving systems.

Scientifically, the sizes and spatial patterns of rocks provide insights into the geological history and evolution of the landing site's terrain. The team's technique would allow for reconstructing and analyzing such invaluable data. Additionally, the method does not require extensive manual labeling or training using site-specific data. This makes it more robust and generalizable across Mars locations that future rovers may explore.

Future Outlook

While promising, this camera-based technique faces challenges regarding reduced accuracy for distant rocks and those sharing color similarities with the background terrain. Lighting variations and occlusions also remain problematic. To mitigate these limitations, the researchers aim to enhance rock contour extraction algorithms and explore multi-view fusion techniques in future work. Developing capabilities to reconstruct complete 3D rock models from multiple image angles could significantly boost measurement precision.

More extensive testing on diverse rover platforms and Mars environments is required to comprehensively establish the method's reliability for adoption in actual missions. Integrating such vision-based characterization and reconstruction techniques will be extremely valuable for upcoming Mars exploration endeavors.

In conclusion, the study proposes an essential advancement in autonomous analysis of Mars rover images to extract terrain insights. If its current limitations are addressed, the approach could become a critical capability enhancing both scientific and engineering aspects of ambitious future Mars missions.
